Starting a Visual UI Scan with Web Scanner

Purpose of Visual UI Scan

Visual UI scans identify layout shifts, broken styles, font mismatches, and other design anomalies across web pages. It compares page screenshots taken during each run against a previously saved baseline (initial scan).

Scans run across combinations of:

  • Browsers: Chrome, Firefox, Safari, Edge
  • Resolutions: A total of 30 viewport options are available, including 10 standard desktop, 10 Android, and 10 iOS device viewports.

Results are redirected to the SmartUI Dashboard for detailed comparison.

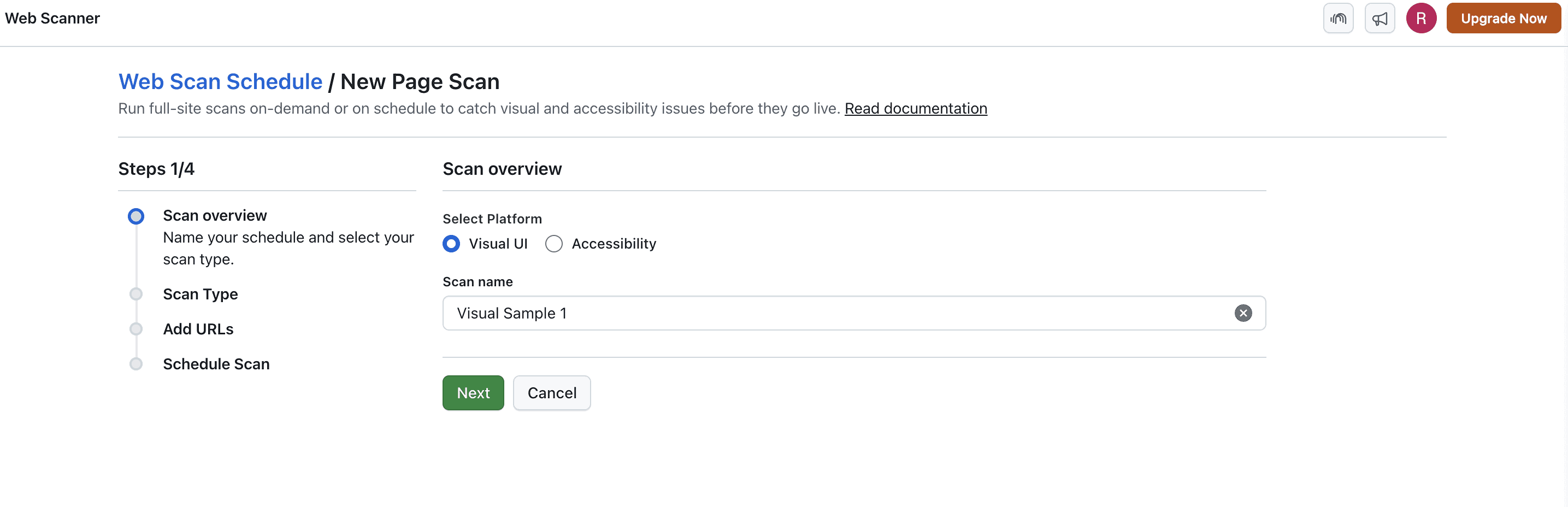

Visual Scan Purpose

Step 2 (If Visual Scan is Selected)

Once Visual UI is selected in Step 1 of the scheduling wizard, the following configuration appears.

Default Settings

  • Browsers: Chrome, Firefox, Safari, Edge
  • Resolutions: Desktop (1920x1080, 1366x768, 1024x768), Tablet, Mobile (Galaxy A12, Galaxy A31, iPhone 14 Pro)
  • Full Page Mode “ON“: Captures the full length of your website regardless of viewport height limitations.
  • Delay “5 Seconds“: To wait for animations or content to stabilize.

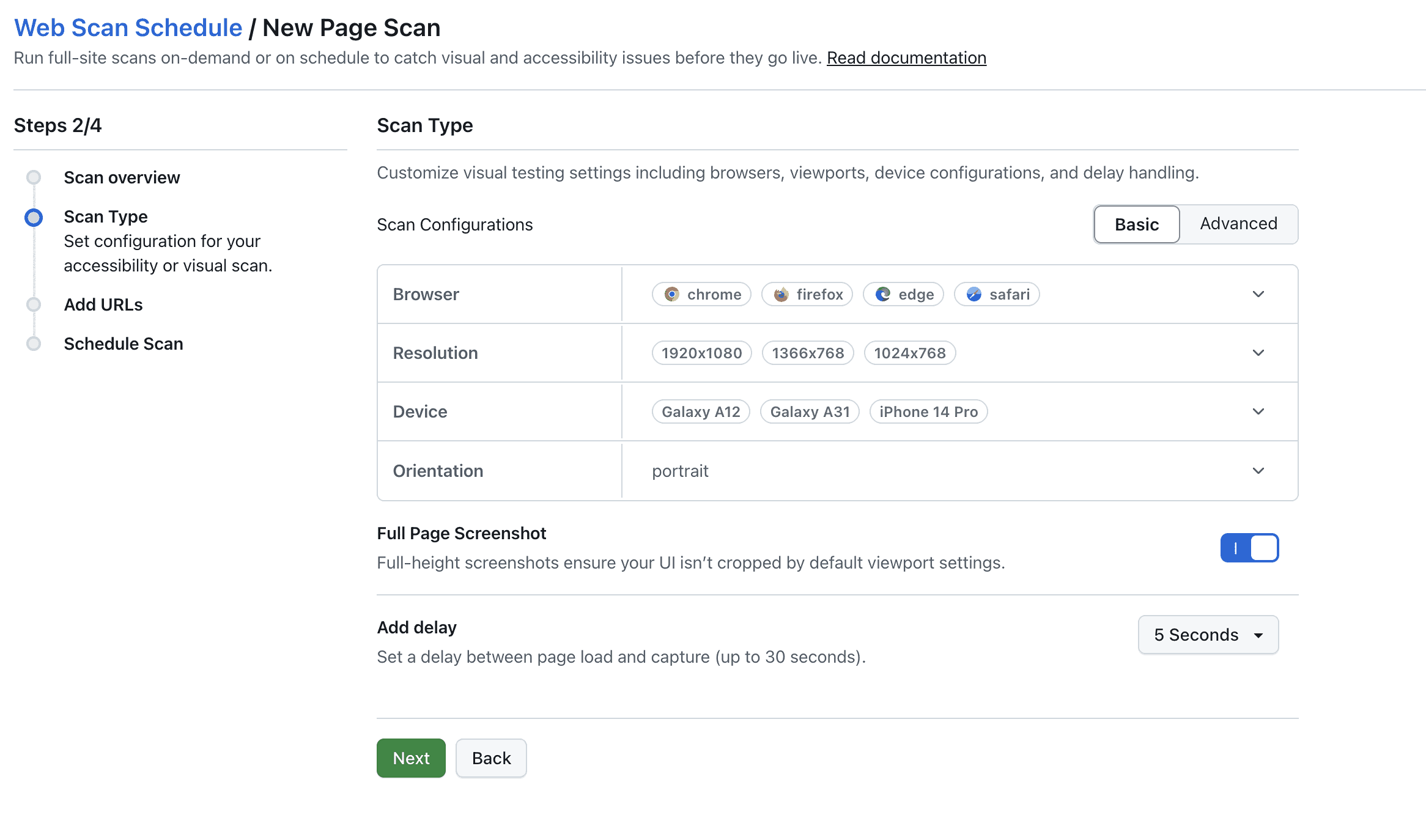

Visual Scan Default Settings

Advanced Options (Visual UI)

Click the "Advanced” Tab to unlock additional configuration tabs.

SmartUI Config Upload

You can create your own .smartui.json file for full control over:

  • Browser selection
  • Resolutions
  • Delay setting
  • The integrated JSON validator checks your configuration.

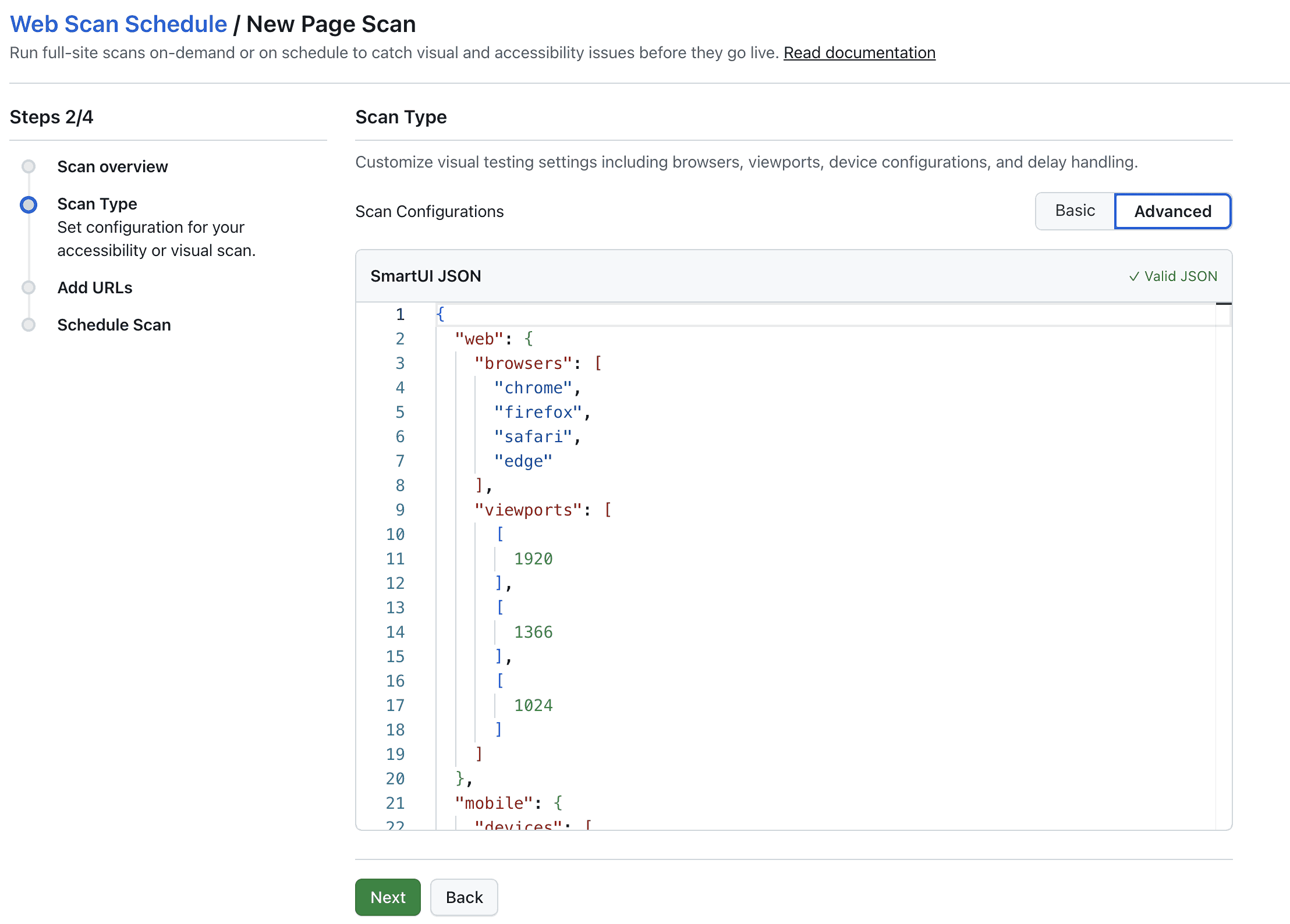

Visual Scan Advanced Options

Default SmartUI Config


"web": {
"browsers": [
"chrome",
"firefox",
"safari",
"edge"
],
"viewports": [
[
1920
],
[
1366
],
[
1024
]
]
},
"mobile": {
"devices": [
"iPhone 14",
"Galaxy S24"
],
"fullPage": true,
"orientation": "portrait"
},
"waitForTimeout": 1000,
"smartIgnore": true,
"enableJavaScript": false,
"ignoreHTTPSErrors": false,
"useGlobalCache": false

Note: Using a SmartUI config bypasses manual browser, resolution, and delay selections, even in the "Edit Config" mode.

Dashboard Overview

After running your tests, the Visual Build becomes available in the dashboard.

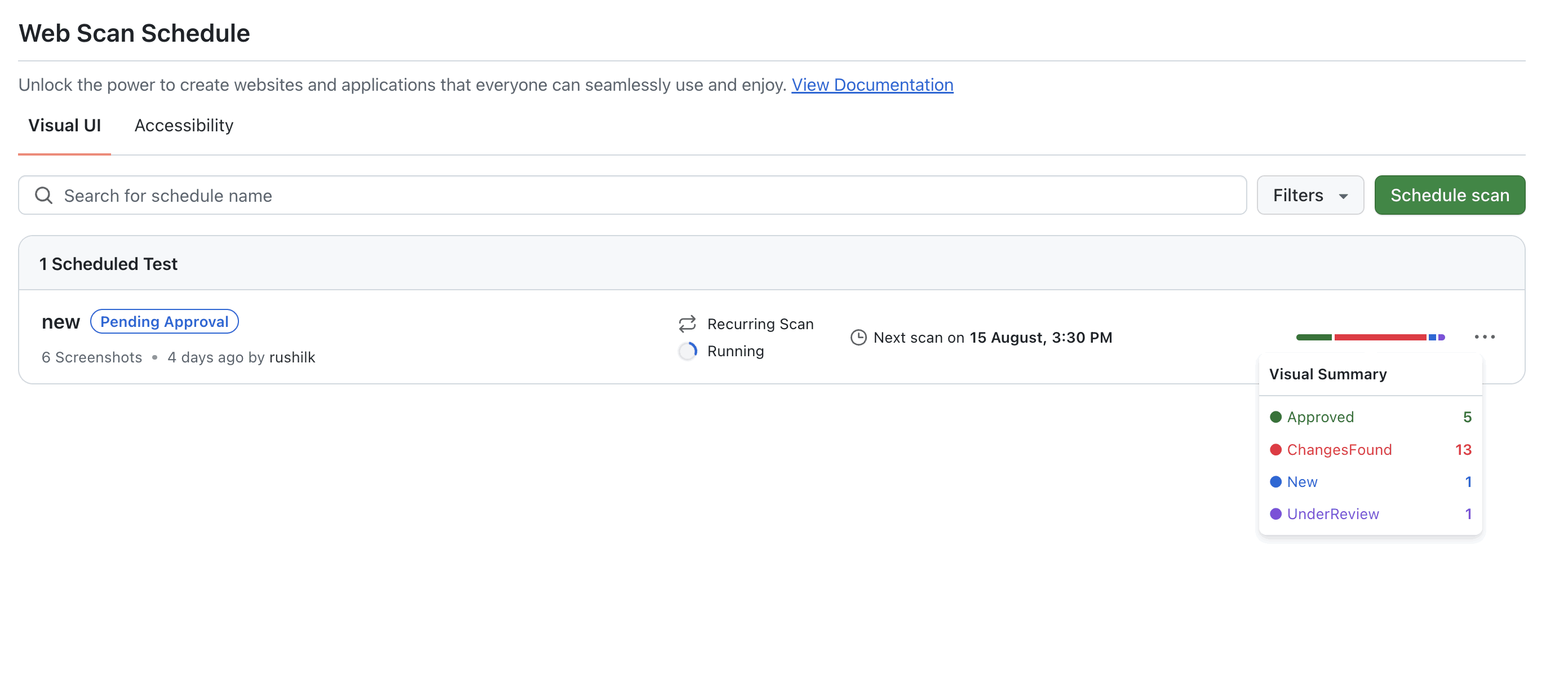

Visual Build

Build Status

Easily track the state of each screenshot — Approved, Changes Found, New, Under Review, and more.

Build Status View

Three-Dot Menu Options

Access additional functions for your build:

Three Dot Menu

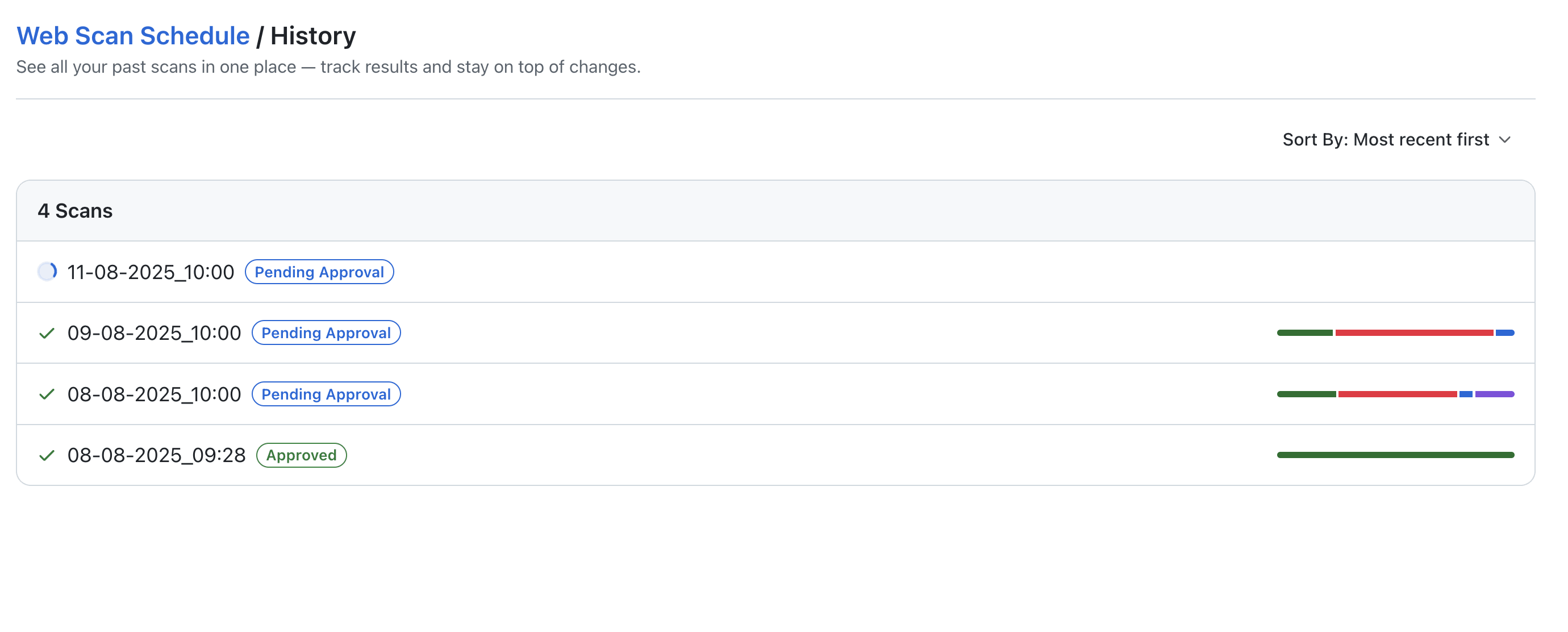

  1. View History
    Browse older builds with complete stats for quick comparison.

  2. Edit Scan Config
    Modify scan settings such as schedule and viewports.

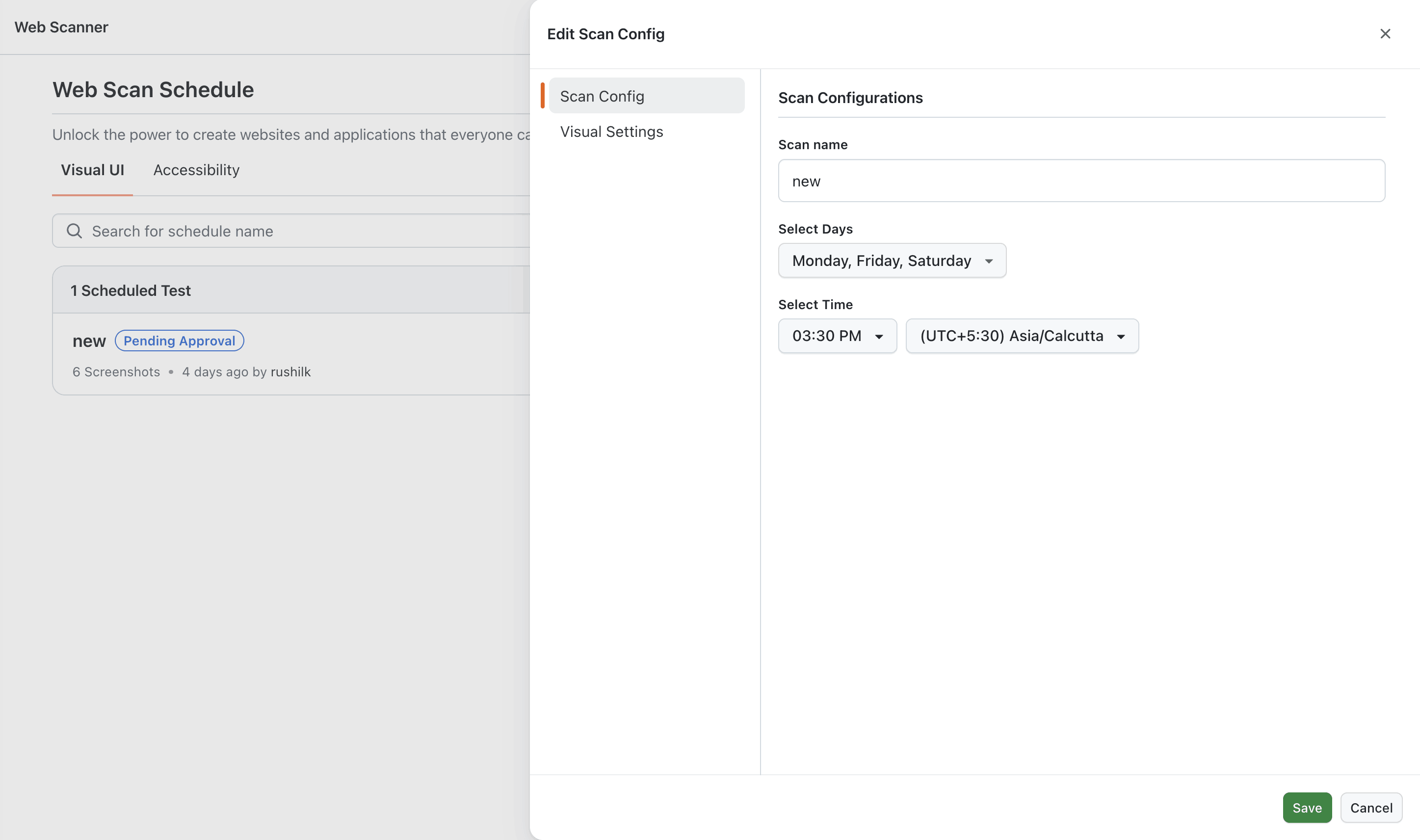

    Edit Scan Config Edit Scan Schedule
  3. Delete Scan
    Remove a scan from the dashboard.

  4. Stop Recurring Scan
    Halt any scheduled recurring scans instantly.

Access your SmartUI Dashboard: SmartUI detects pixel-based layout changes, design mismatches, missing elements, or unintended visual regressions by comparing screenshots taken at scheduled intervals.

smartui dashboard
