Reqnroll with Selenium and Appium: Tutorial to Run Your First Test on LambdaTest

In this topic, you will learn how to configure and run your web and mobile automation testing scripts on LambdaTest Selenium cloud grid and LambdaTest Appium cloud grid using Reqnroll.

Objective

By the end of this topic, you will be able to:

Set up an environment for testing your hosted web pages using Reqnroll framework with Selenium.
Understand and configure the core capabilities required for your Selenium test suite.
Run test cases in parallel using Reqnroll with Selenium to reduce build times.
Test your locally hosted pages on LambdaTest platform.
Explore advanced features of LambdaTest.

Note: All the code samples in this documentation can be found in the LambdaTest's Repository on GitHub. You can either download or clone the repository to quickly run your tests.

Prerequisites For Running Reqnroll Selenium

Note: This tutorial is specifically for Windows users using Microsoft Visual Studio.

Before you can start performing Reqnroll automation testing with Selenium, you would need to:

Download and Install Selenium WebDriver from the official website.
Make sure you work with latest version of Reqnroll.
.Net framework to deliver guidelines while developing a range of application using C#.
Download Selenium WebDriver Language Binding for C# and extract them to appropriate folder. A .NET Core SDK of 2.1 or greater version.
You would also need LambdaTest tunnel binary file for testing your locally hosted or privately hosted projects.

Web Automation Testing with Reqnroll

Step 1: Create a virtual environment by triggering the virtualenv venv command on the terminal.

virtualenv venv

cmd

Step 2: Navigate the newly created virtual environment by triggering the source venv/bin/activate command on the terminal.

source venv/bin/activate

Step 3: You can fetch the LambdaTest Credentials from the LambdaTest Profile Section.

Update the LambdaTest Credentials - LT_USERNAME and LT_ACCESS_KEY in Makefile.

Alternatively, you can also export the environment variables LT_USERNAME and LT_ACCESS_KEY by triggering the following commands on the terminal:

For macOS:

export LT_USERNAME=LT_USERNAME
export LT_ACCESS_KEY=LT_ACCESS_KEY

For Linux:

export LT_USERNAME=LT_USERNAME
export LT_ACCESS_KEY=LT_ACCESS_KEY

For Windows:

set LT_USERNAME=LT_USERNAME
set LT_ACCESS_KEY=LT_ACCESS_KEY

Step 4: Run the make clean command on the terminal to clean the temporary files.

make clean

cmd

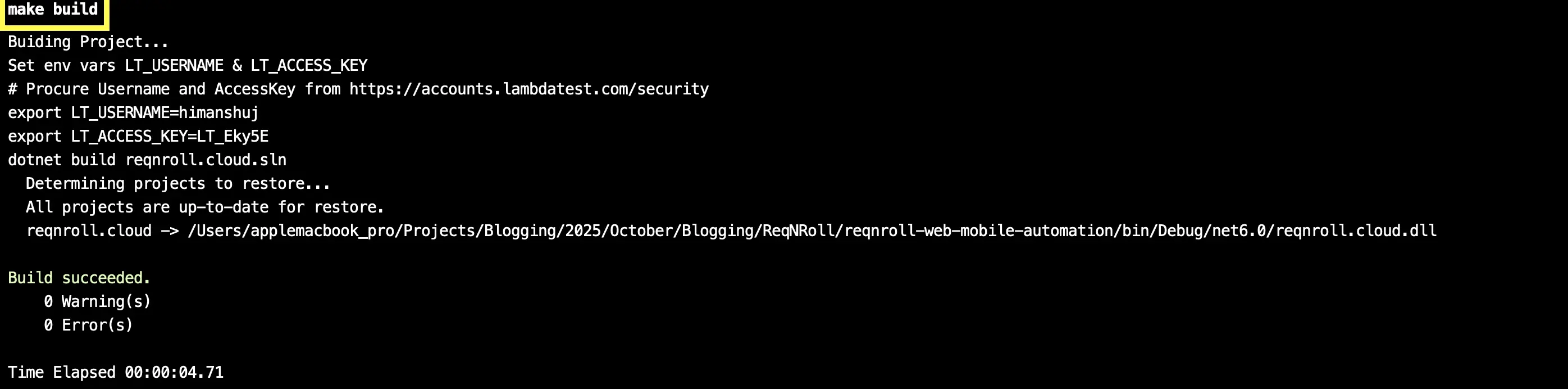

Step 5: Trigger the command make build on the terminal to build the automation project

make build

cmd

Step 6: Execution

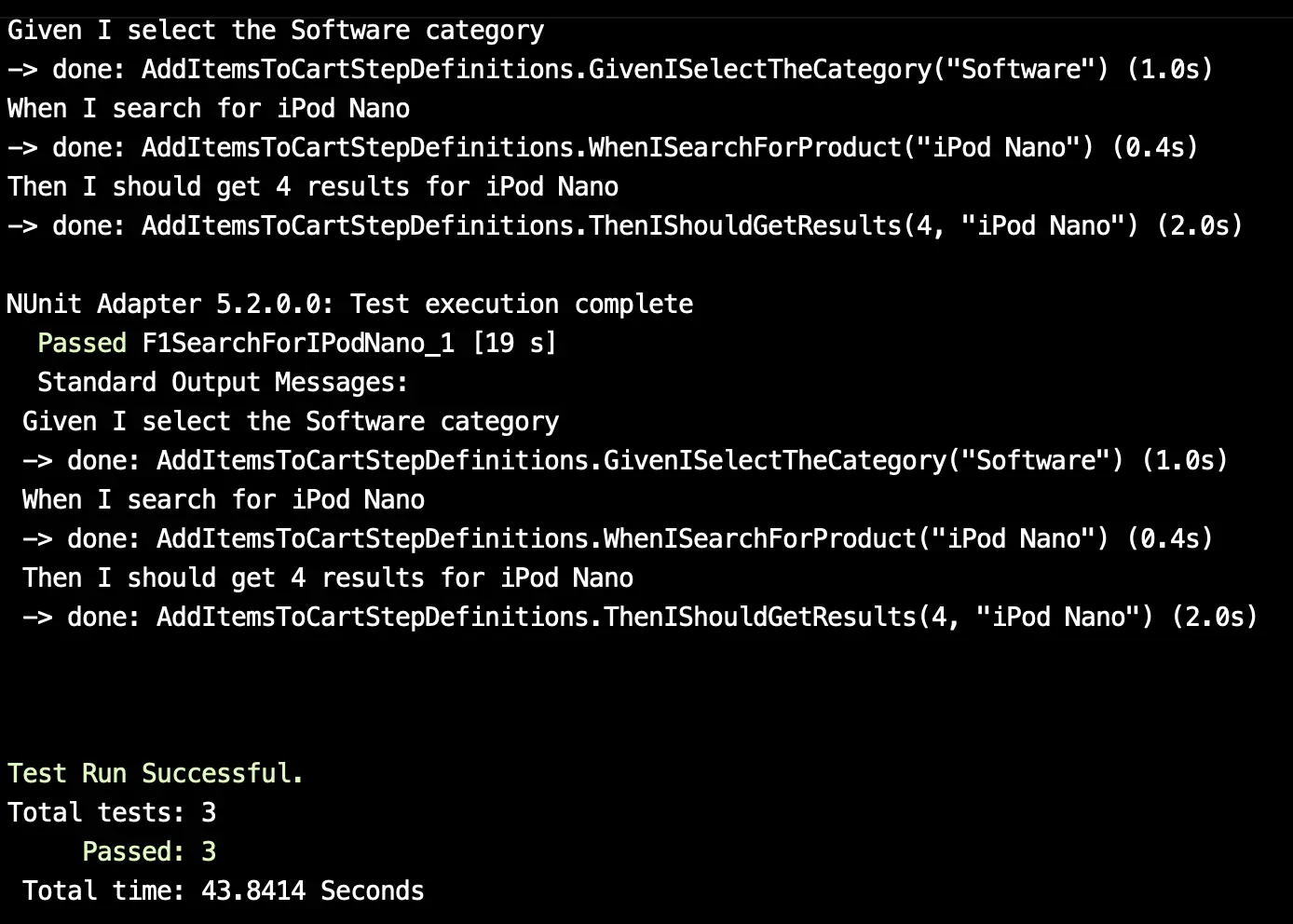

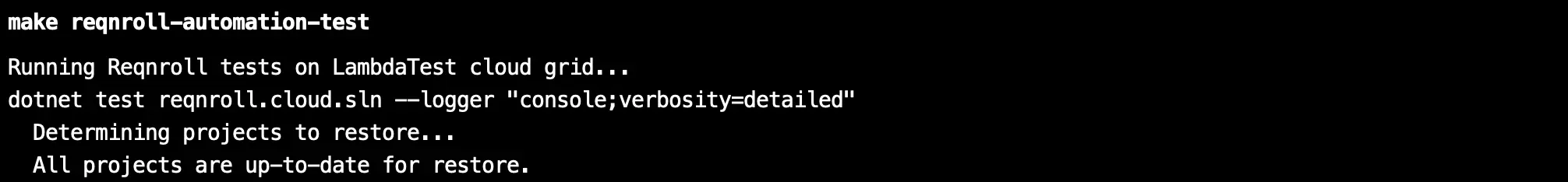

Trigger the command make reqnroll-automation-test to run the Reqnroll tests on the LambdaTest platform

cmd

Step 7: Execution

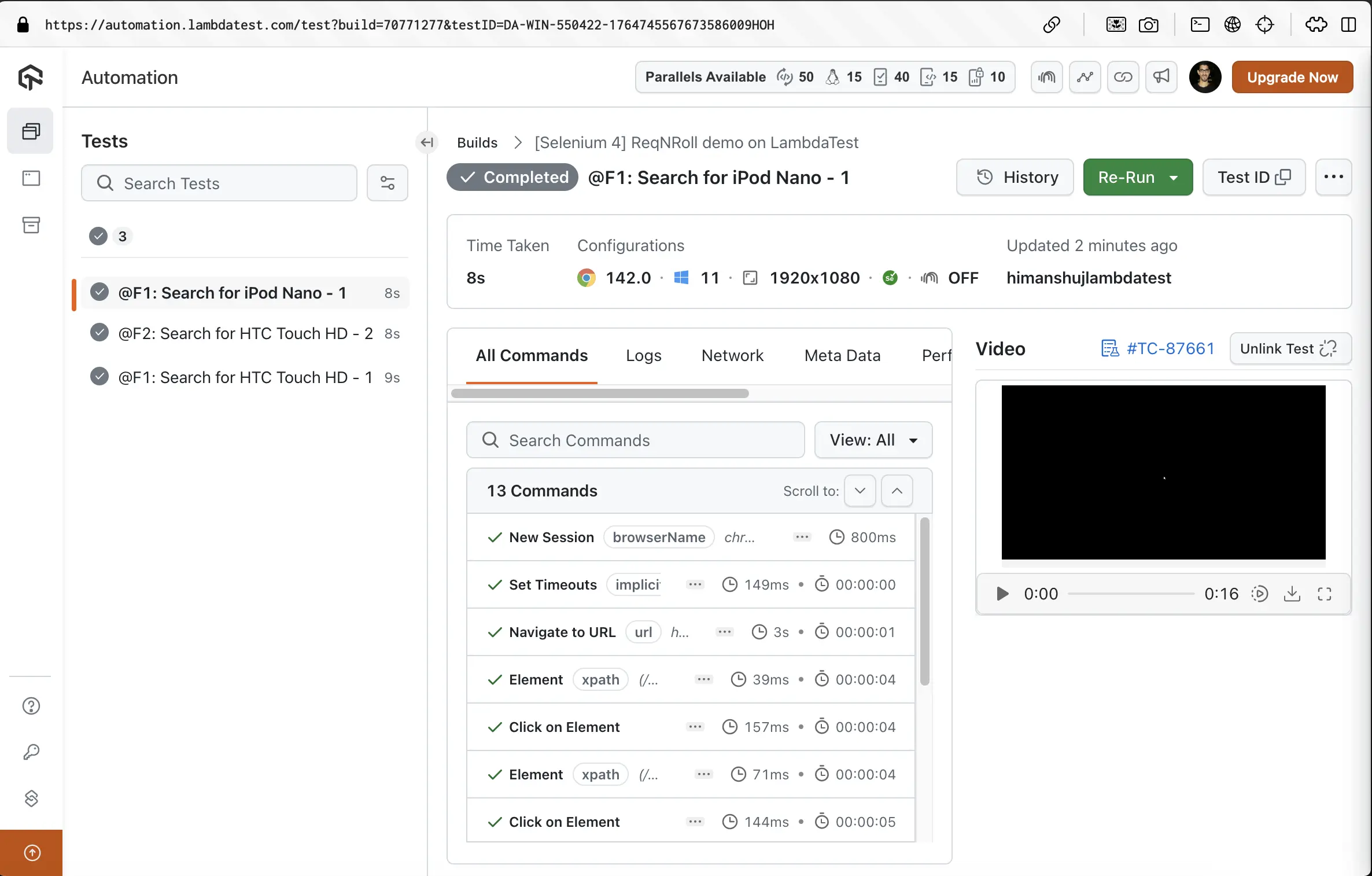

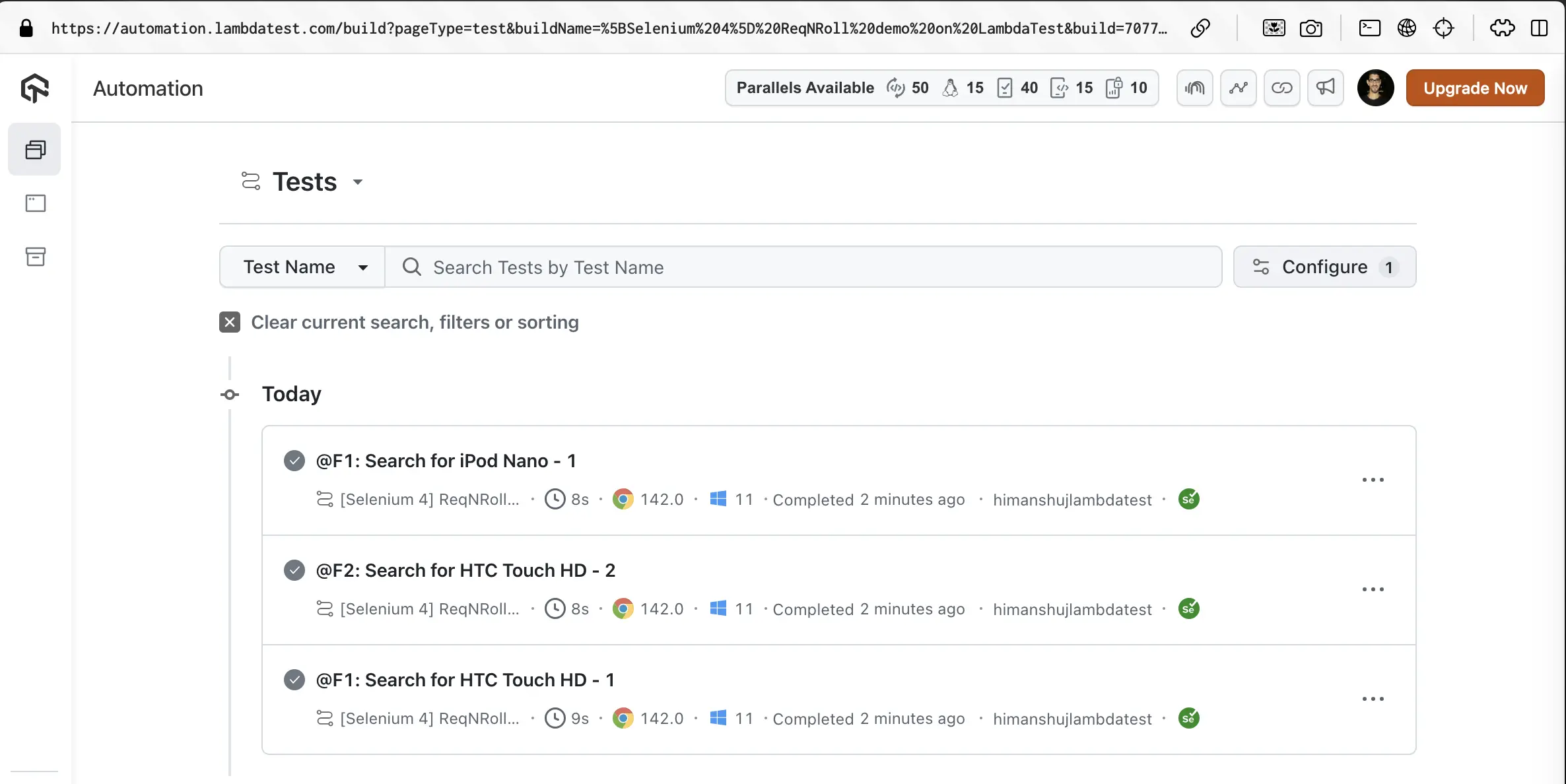

Navigate to the LambdaTest Automation Dashboard to check the status of the test execution:

cmd

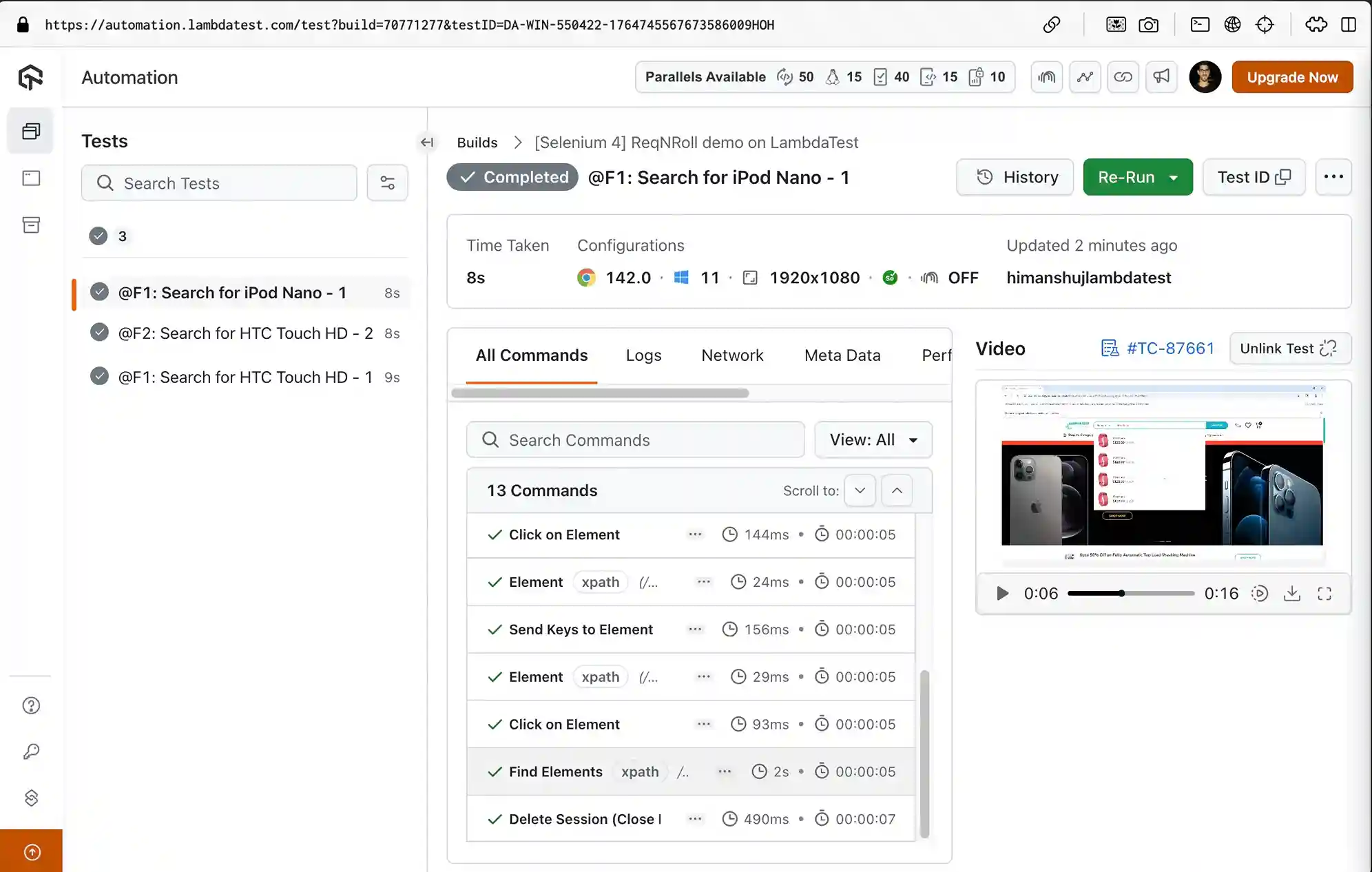

As seen below, all the scenarios that are a part of respective .feature(s) files successfully executed on LambdaTest.

cmd

Mobile App Automation Testing with Reqnroll

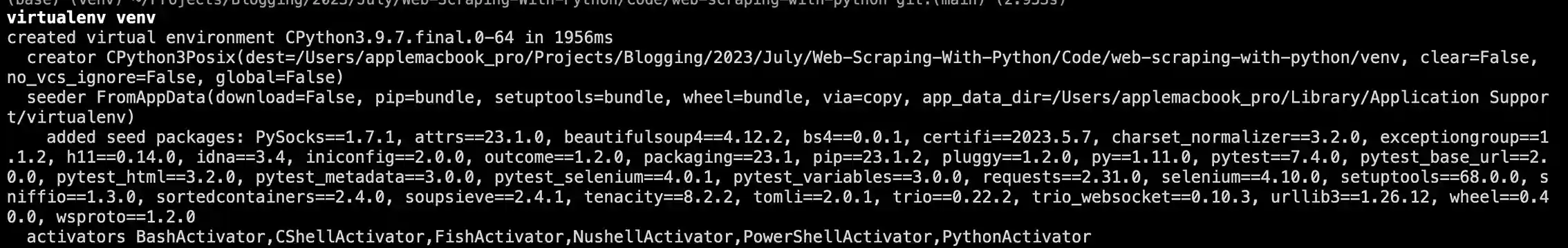

Step 1: Create a virtual environment by triggering the virtualenv venv command on the terminal

virtualenv venv

cmd

Step 2

Navigate the newly created virtual environment by triggering the source venv/bin/activate command on the terminal

source venv/bin/activate

Step 3

You can fetch the LambdaTest Credentials from the LambdaTest Profile Section section.

Update the LambdaTest Credentials - LT_USERNAME and LT_ACCESS_KEY in Makefile.

Alternatively, you can also export the environment variables LT_USERNAME and LT_ACCESS_KEY by triggering the following commands on the terminal:

For macOS:

export LT_USERNAME=LT_USERNAME
export LT_ACCESS_KEY=LT_ACCESS_KEY

For Linux:

export LT_USERNAME=LT_USERNAME
export LT_ACCESS_KEY=LT_ACCESS_KEY

For Windows:

set LT_USERNAME=LT_USERNAME
set LT_ACCESS_KEY=LT_ACCESS_KEY

Step 4

For the testing, we are using the Proverbial App (apk) from LambdaTest. The app needs to be uploaded to the LambdaTest cloud storage. Run the below command for uploading the app to the cloud:

Note: Please replace the LT_USERNAME and LT_ACCESS_KEY with the actual LambdaTest credentials that are available in the LambdaTest Profile Section section.

curl -u "LT_USERNAME:LT_ACCESS_KEY" -X POST "https://manual-api.lambdatest.com/app/upload/realDevice" -F "url=https://prod-mobile-artefacts.lambdatest.com/assets/docs/proverbial_android.apk" -F "name=proverbial-android" -F "custom_id=sampleName" -F "storage=url" -F "visibility=individual"

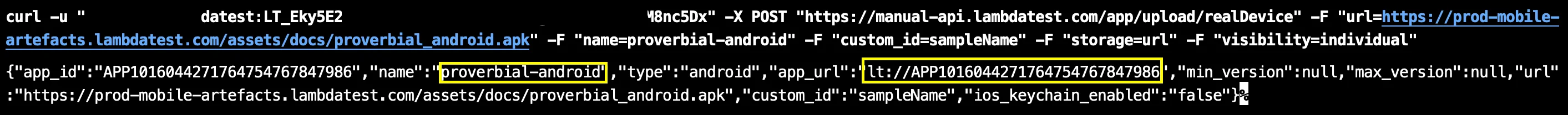

If the command execution is successful, you would see a APP ID in the command output:

cmd

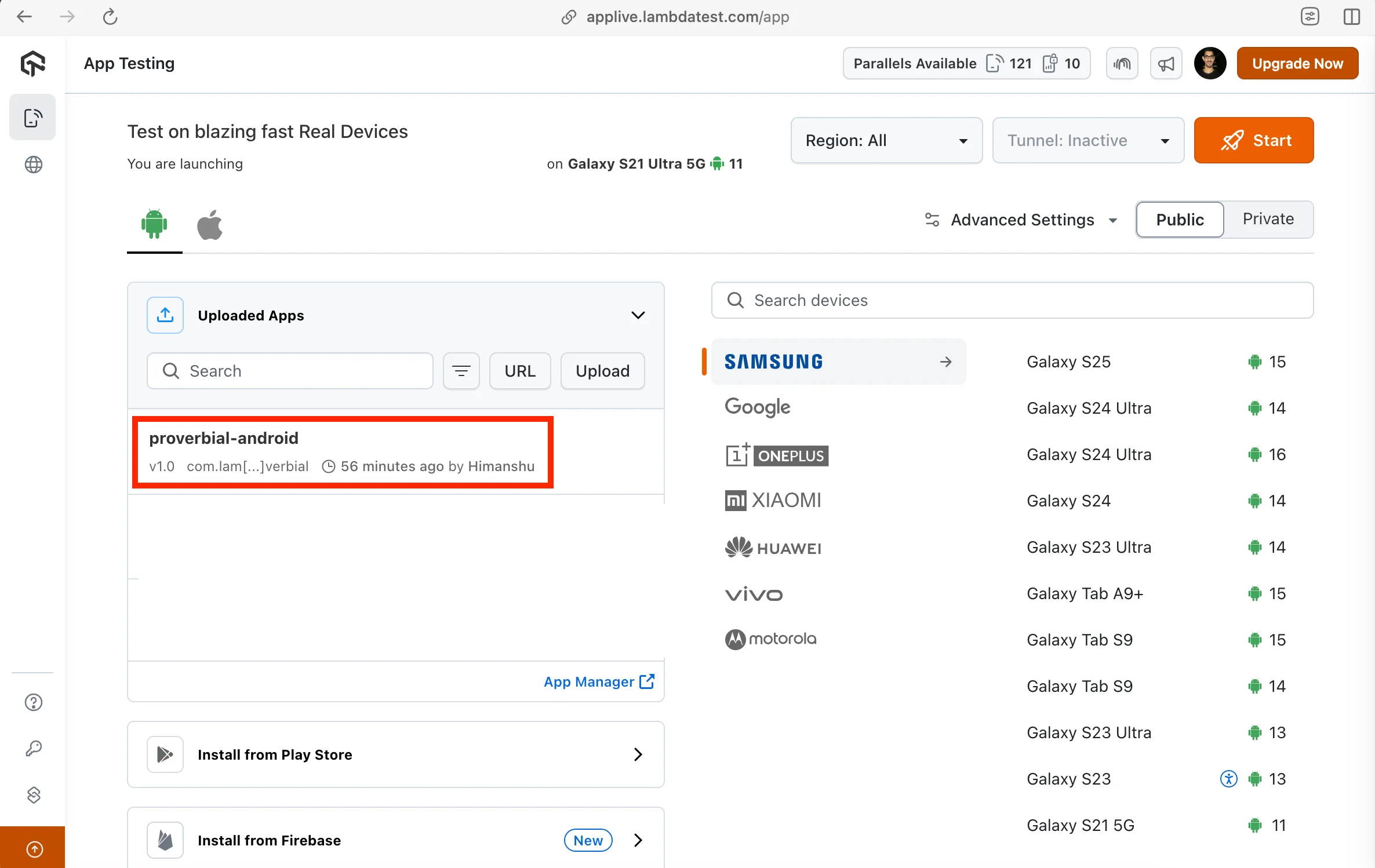

You would also see the app named 'proverbial-android' in the App Live App Dashboard.

cmd

Now that the app is available for testing, let's execute the other make commands

Step 5

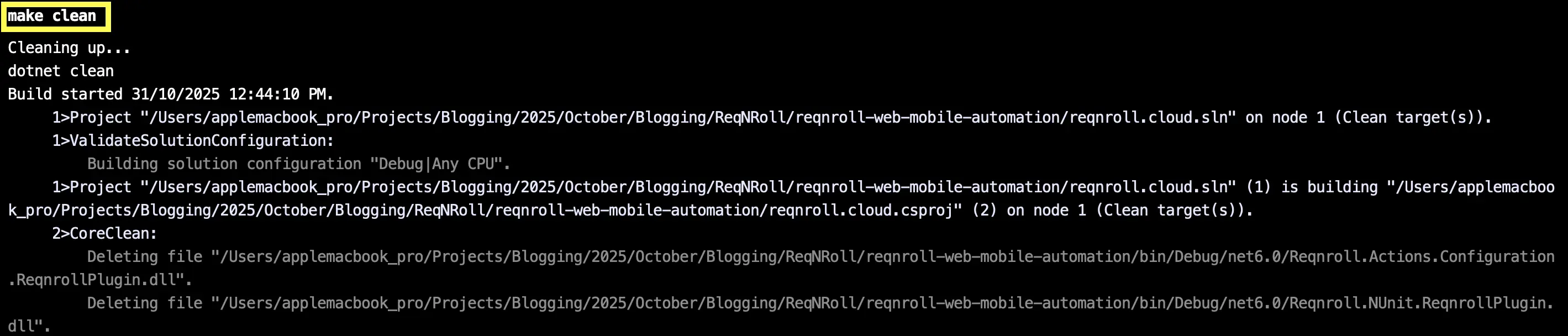

Run the make clean command on the terminal to clean the temporary files

make clean

cmd

Step 6

Trigger the command make build on the terminal to build the automation project

make build

cmd

Step 7

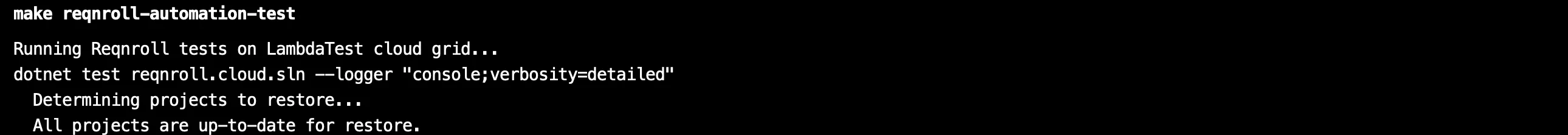

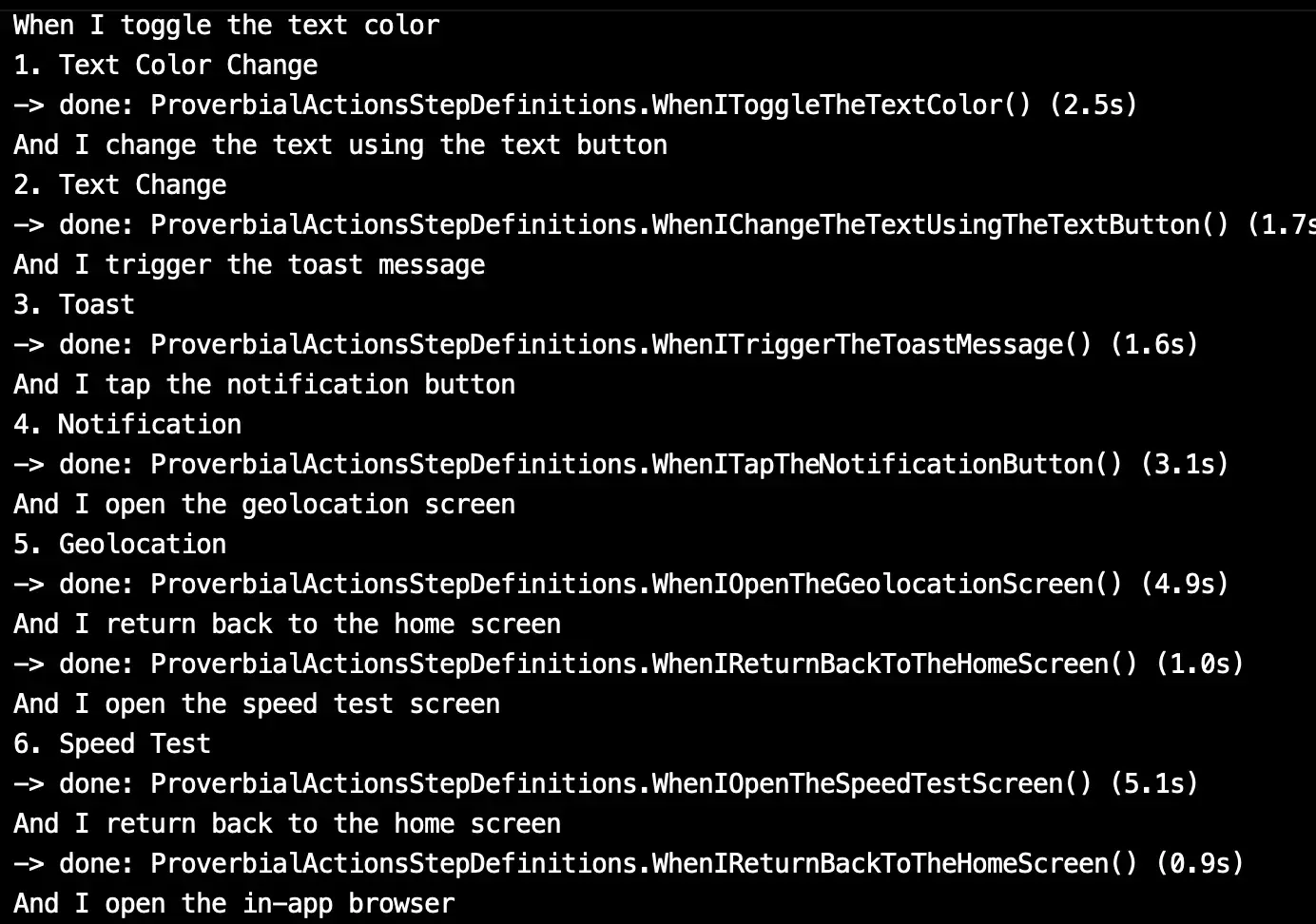

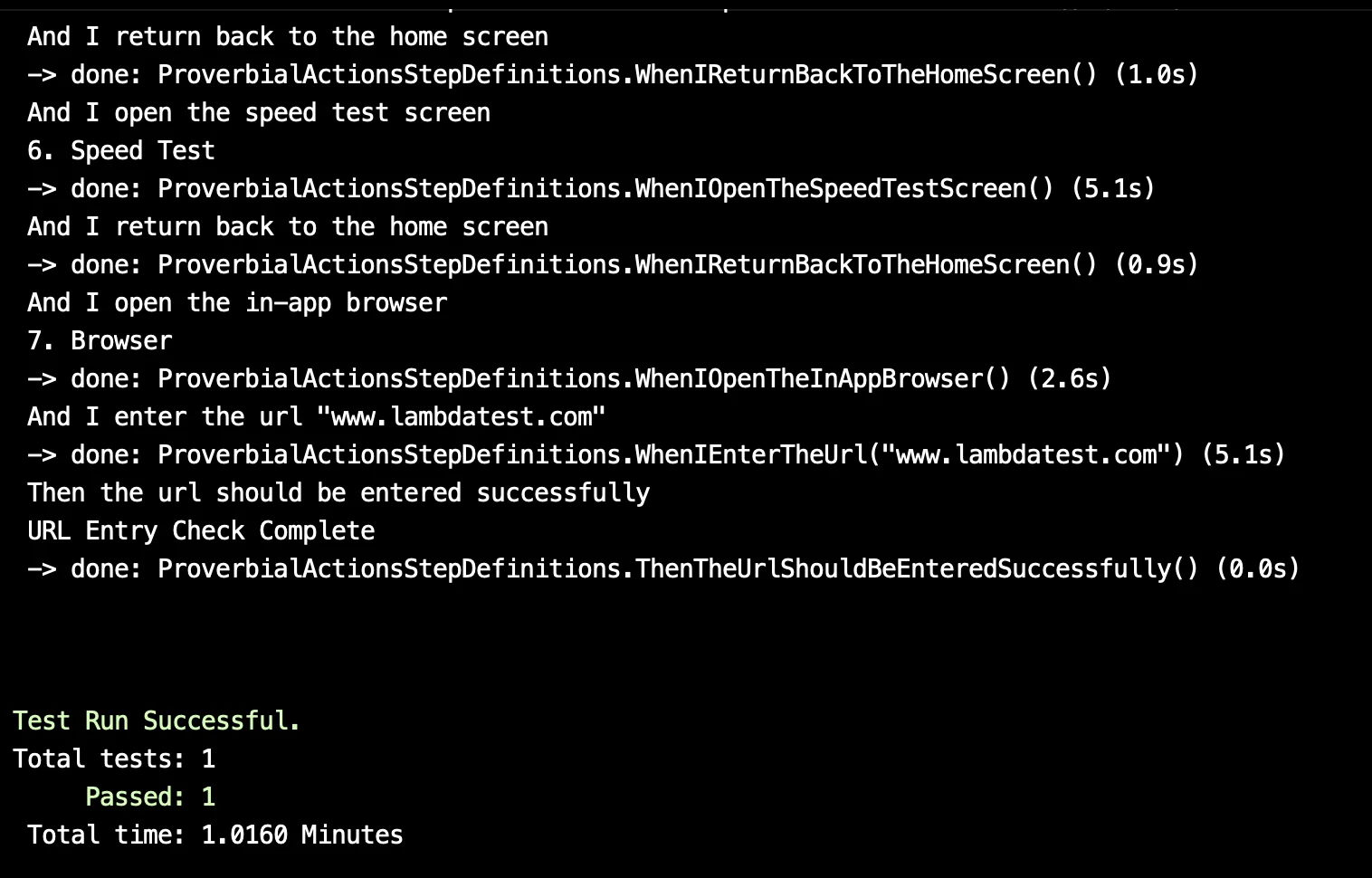

Trigger the command make reqnroll-automation-test to run the Reqnroll tests on the LambdaTest platform

cmd

Step 8

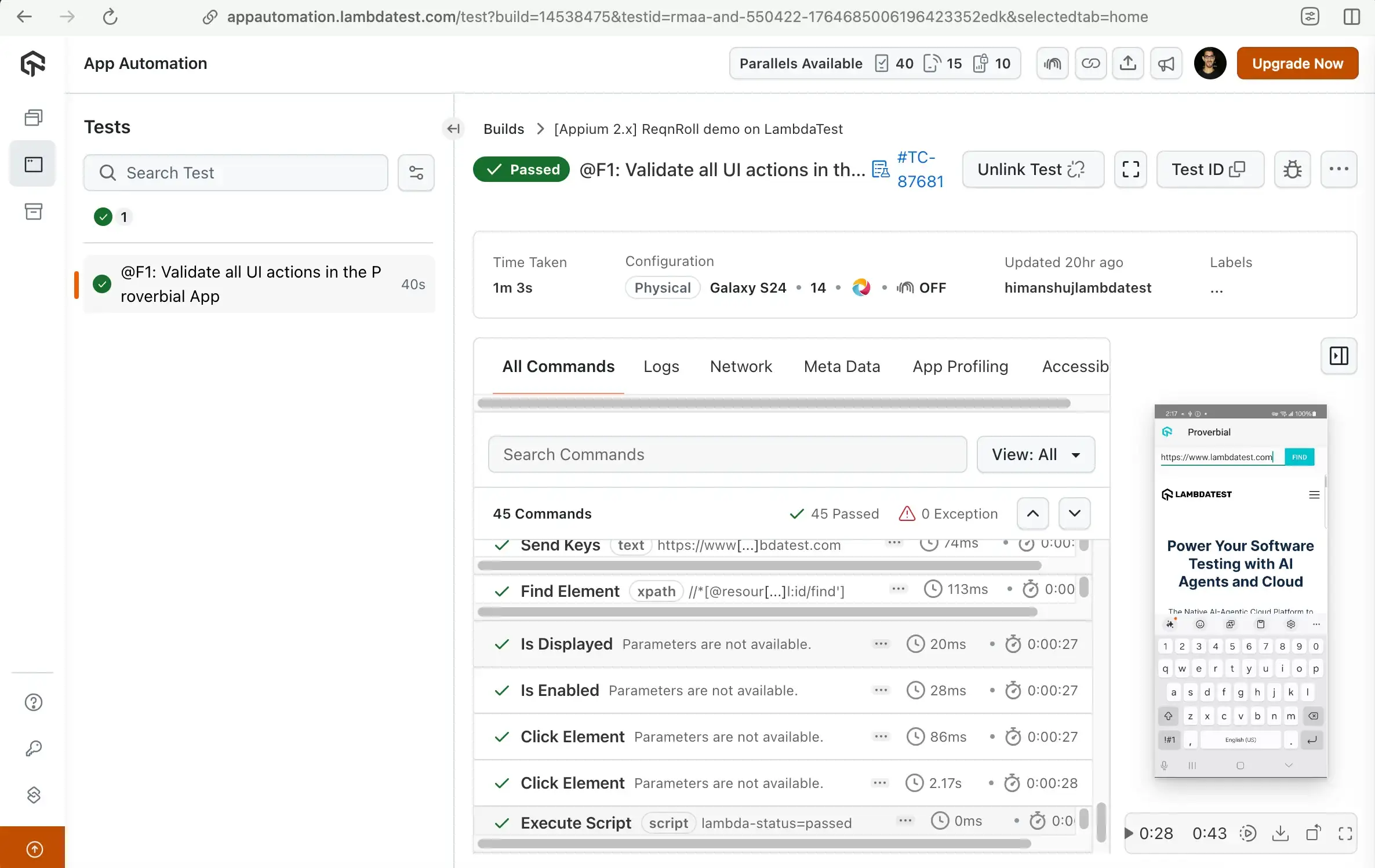

Navigate to the LambdaTest Automation Dashboard to check the status of the test execution. As seen below, all the scenarios that are a part of respective .feature(s) files successfully executed on LambdaTest.

cmd
